J Cancer 2021; 12(2):358-370. doi:10.7150/jca.47158

Research Paper

Visualization and bibliometric analysis of cAMP signaling system research trends and hotspots in cancer

Caoli Tang1, Duanya Liu1, Yongsheng Fan1, Jun Yu1, Cong Li1, Jianmei Su1,2 Corresponding address, Chunhong Wang1 Corresponding address

1. Department of Preventive Medicine, School of Public Health, Wuhan University, Donghu Road 115, Wuhan 430071, Hubei, China.
2. Key Laboratory of Regional Development and Environmental Response, Faculty of Resources and Environmental Science, Hubei University, Friendship Avenue 368, Wuhan 430062, Hubei, China.

This is an open access article distributed under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0/). See http://ivyspring.com/terms for full terms and conditions.
Tang C, Liu D, Fan Y, Yu J, Li C, Su J, Wang C. Visualization and bibliometric analysis of cAMP signaling system research trends and hotspots in cancer. J Cancer 2021; 12(2):358-370. doi:10.7150/jca.47158. Available from https://www.jcancer.org/v12p0358.htm

File import instruction


Cyclic adenosine monophosphate (cAMP) is an essential second messenger that widely distributed among prokaryotic and eukaryotic organisms. cAMP can regulate various biological processes, including cell proliferation, differentiation, apoptosis and immune functions. Any dysregulation or alteration of cAMP signaling may cause cell metabolic disorder, immune dysfunction and lead to disease or cancer. This study aimed to conduct a scientometric analysis of cAMP signaling system in cancer field, and explored the research trend, hotspots and frontiers from the past decade. Relevant literatures published from 2009 to 2019 were collected in the Web of Science Core Collection database. EndNote X9 was used to remove duplicate articles, and irrelevant articles were manually filtered. Bibliometric analyses were completed by CiteSpace V. A total of 4306 articles were included in this study. The number of related literatures published each year is gradually increasing. Most of them belong to “Biochemistry & Molecular Biology”, “Oncology”, “Cell Biology”, “Pharmacology & Pharmacy” and “Endocrinology & Metabolism” areas. In the past decade, USA, China, and Japan contributed the most to the research of cAMP signaling system in cancer. The frontiers and hotspots of cAMP signaling pathway system related to cancer fields mainly focused on cancer cell apoptosis, metastasis, and multiple tumors occurrence in patients with Carney complex. Intervention of the cAMP metabolic pathway may be a potential and promising therapeutic strategy for controlling clinical cancer and tumor diseases.

Keywords: cAMP, Cancer, CiteSpace, Bibliometrics, Hotspots


Cyclic adenosine monophosphate (cAMP) is an important cellular second messenger that firstly discovered in 1956 [1] and widely distributed among prokaryotic and eukaryotic organisms. cAMP mediates a multitude of cellular processes and biological functions [2], including gene regulation, cell proliferation and differentiation, apoptosis, energy metabolism, memory formation, neurotransmission, intestinal secretion, retinal phototransduction and immune functions [3-9]. cAMP is formed from ATP by adenylyl cyclases (ACs) and hydrolyzed by phosphodiesterases (PDEs) [10,11]. cAMP exerts its actions by targeting the downstream effectors such as cAMP-dependent protein kinase (PKA), exchange proteins directly activated by cAMP (EPACs), and cyclic nucleotide-gated ion channels (CNGC). PKA is a major effector that can subsequently phosphorylate cAMP response element binding protein (CREB). CREB is an essential transcriptional co-factor which initiates an array of transcriptional cascades and target gene expressions [12].

Given the crucial roles of cAMP plays, perturbing the cAMP signaling processes may cause cell metabolic disorder and multiple organism diseases. Cancer is one of the tumor development diseases caused by abnormal cell proliferation and differentiation, mainly presents as apoptosis inhibition and insufficient cell death. Current progress in cancer field has disclosed a lot of rational methods in dealing with tumor formation [13-16], and many scientists have turned their attention to the universal small organic molecule cAMP, which influences vital cellular signaling transduction and regulates physiological metabolic processes [17-21]. Therefore, cAMP has become an ideal target for contemporary therapies for cancer and tumor diseases, as well as combating bacteria virulence and developing new drugs. Although numerous approaches seek to target the cAMP signaling system, such as synthanses, hydrolyases, and downstream effector proteins and RNAs, the precise molecular mechanism of cAMP causes or defenses against cancer is still relatively unclear and the clinical treatment effect is also less reported. Bibliometrics has been widely used in the analysis of research output, as well as the discovery of hotspots and research trends [22]. So bibliometrics is helpful to understand the knowledge base and research frontier of a specific field. In addition, CiteSpace which is developed by Chaomei Chen is an effective visualization software based on bibliometrics [23,24]. However, there is no bibliometric study on cAMP signaling system in the cancer field to date. In this study, the research literatures on the role of cAMP signaling system in the field of cancer published in the past decade were retrieved from the Web of Science and analyzed by the bibliometric study. The purpose of this scientometric study is to analyze the research literatures of cAMP signaling system with its linkage to cancer, and explore the research trends, hotspots and other useful information in this field.

Materials and Methods

Data source and search strategy

Relevant literatures were collected in the Web of Science Core Collection (WoSCC) database which was widely used in bibliometric analysis [25,26]. The search query was “TS (Topics)= (“cAMP” or “cyclic adenosine monophosphate” or “cyclic AMP” or “protein kinase A” or “PKA” or “EPAC*” or “CNGC”) and TS= (“tumor*” or “cancer*” or “carcino*” or “onco*”)” (the symbol “*” is a retrieval symbol of WOS advanced retrieval, which means to search for words prefixed with the word before “*”). Research results were restricted by language (English) and document type (Article). Publication year was restricted from 2009 to 2019. Literature search was completed within a day to avoid bias caused by database updates. A total of 4590 articles were retrieved. Considering that the word “camp” has the meaning of vacation camp, the retrieved literature was screened, and the articles that the definition of “camp” is not cyclic adenosine monophosphate were excluded. 284 articles and duplicate literature were screened out, so a total of 4306 articles were included in this analysis.

Data analysis tools

EndNote X9 was used to remove duplicate articles, and then irrelevant articles were manually filtered. CiteSpace V was used to complete bibliometric analyses of categories, countries and institutions, co-cited journals, authors and co-cited authors, co-occurrence of keywords and references. The parameters of CiteSpace were set as follows: time slicing (from 2009 to 2019, one year per slice); term source (title, abstract, author keywords, keywords plus); node types (select author, institution, country, keyword, category, reference, cited author and cited journal in turn); strength (cosine); scope (within slices); selection criteria (top 50).

The visualization map is mainly composed of many nodes and interwoven connections. Nodes represent different subject categories. The size of each node indicates the number or citation frequency. The larger the circle, the more literature belongs to this research field. Each circle is made up of different color rings, and each color corresponds to the time scale. The change of color from cold blue tone to warm red tone in the time scale indicates the change of time from early to recent. If the periphery of a node is bright red or bright purple, it represents that the node is a burst node or its betweenness centrality is bigger than 0.10. Betweenness centrality measures the degree of one node in the middle of a path that connects to other nodes in the network. The nodes with high centrality are located in the center of the network, which are the transitions of other parts. The line which links two circles indicates that they are connected or cooperated or co-cited. The thickness of a line is proportional to its strength or correlation [27,28].

Results and Discussion

Analysis of the basic situation of the extracted literature

Analysis of publication outputs

In this study, 4306 articles were included. The number of annual publications was generally considerable, but the number in the year of 2013 and 2019 was relatively small compared with that of other years (Figure 1A). There was no obvious research trend but kept relatively stable from 2009 to 2019. In order to understand the general research trend of cAMP signaling system with its linkage to cancer in the past decade, the trend line of publications in the scatter plot was drawn in Figure 1B. The trend line was stable with a slight upward tendency. Based on these results, it can be inferred that the corresponding research is in a plateau period in recent years. As is known to all, the topic of cancer has always been a hotspot in various fields for a long time, while the related research of cAMP signaling system is also at a mature stage, there may be some new breakthroughs in the next few years.

Analysis of categories

CiteSpace's co-occurrence analysis of subject categories, which is based on Web of Science category, is an effective way to understand the related research fields. Visual calculation results show that these 4306 papers mainly appear in 105 research fields. Table 1 shows the ranking of subject categories according to the publication frequency and betweenness centrality, respectively. “Biochemistry & molecular biology” (997; 0.25) accounted for the largest proportion and had the second highest centrality. In addition, “Pharmacology & Pharmacy” (481; 0.27), “Cell Biology” (823; 0.11), “Neurosciences & Neurology” (254; 0.14) and “Chemistry” (214; 0.15) also had a high frequency and centrality. Figure 2 shows the co-occurrence network of subject categories. The nodes of “Biochemistry & Molecular Biology”, “Pharmacology & Pharmacy” and “Cell Biology” are relatively large, and the outer rings of these circles are purple, indicating that most of the researches of cAMP signaling system in the cancer field focus on these three directions. Thus, studies in these research areas are of great significance to other areas.

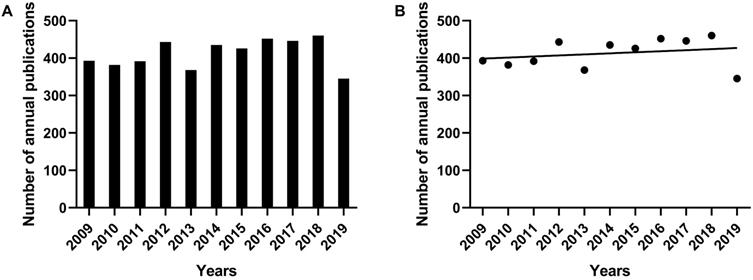

 Figure 1

The number of annual publications on the research of cAMP signaling system with its linkage to cancer from 2009 to 2019. (A) Histogram of the number of annual publications. (B) Scatter plot and trend line of the number of annual publications.

J Cancer Image (Click on the image to enlarge.)

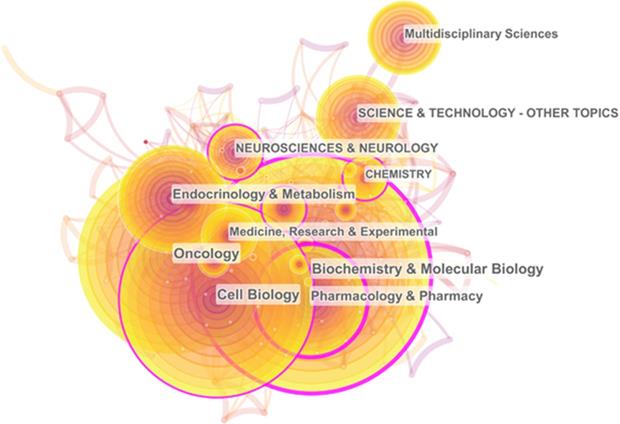

 Figure 2

The co-occurrence network of subject categories.

J Cancer Image (Click on the image to enlarge.)

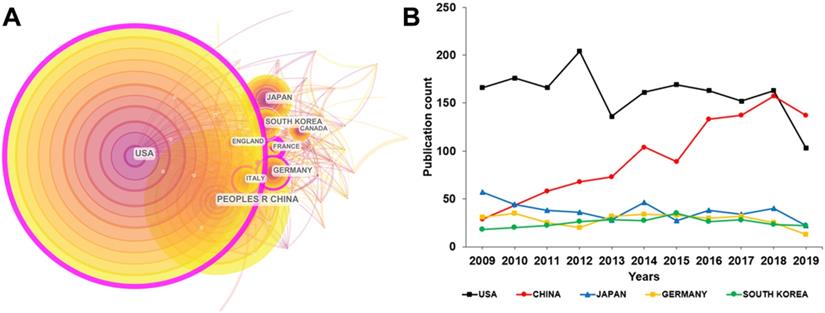

 Figure 3

(A) Collaboration network map of leading countries for cAMP signaling system with its linkage to cancer from 2009 to 2019. (B) Time-varying trend of the number of published publications in the top five countries each year.

J Cancer Image (Click on the image to enlarge.)
 Table 1

Top ten categories of cAMP signaling system with its linkage to cancer from 2009 to 2019

1Biochemistry & Molecular Biology997Pharmacology & Pharmacy0.27
2Oncology826Biochemistry & Molecular Biology0.25
3Cell Biology823Immunology0.23
4Pharmacology & Pharmacy481Biotechnology & Applied Microbiology0.16
5Endocrinology & Metabolism478Chemistry0.15
6Science & Technology - Other Topics378Neurosciences & Neurology0.14
7Multidisciplinary Sciences359Physiology0.14
8Medicine, Research & Experimental264Toxicology0.14
9Neurosciences & Neurology254Cell Biology0.11

Analysis of leading countries and institutions

These publications were contributed by 86 countries. Figure 3A with 57 nodes and 389 links shows these authors' countries and their collaboration network. The circles and lines in Figure 3A respectively represent each country's output and their collaboration. United States of America (USA) was the most productive country with 1758 publications. The People's Republic of China (China) ranked second with 1028 publications. Japan (410), Germany (310) and South Korea (275) ranked third to fifth. To sum up, USA, China, Japan, Germany, South Korea, Italy, Canada, France and England played a major role in the research of cAMP signaling system with its linkage to cancer.

Each country had a different publication trend. Figure 3B displays the time-varying trend of the annual publications in the top five countries. Although the largest amount of the publications was contributed by USA, it performed a decreasing trend after 2012, while China showed a continuous upward trend over time. It can be predicted that in the next few years, China will surpass USA in the number of publications and leap to the top. The reasons why a developing country can increasingly publish a huge quantity of research on cAMP with its linkage to cancer are as follows. Firstly, Chinese government's investment in scientific research, especially the basic medical research is increasing. Secondly, as a country with a large population, China has a substantial absolute number of people suffering from cancer and other diseases, which needs more urgent attention and treatment.

There are 3654 institutions involved in these publications. As shown in Table 2, the most productive institution was Chinese Academy of Sciences (65), followed by Shanghai Jiao Tong University (60), University of Texas MD Anderson Cancer Center (56), Seoul National University (54) and University of California- San Diego (49) respectively. Among the top ten institutions according to the number of publications, most were from China and USA, which corresponded to the distribution of the country. Figure S1 shows the collaboration network among these institutions. From the perspective of inter-agency cooperation, there was closer cooperation between institutions within the same country and less collaboration between different countries. The collaboration between USA and other countries was relatively more. National Cancer Institute (0.15), University of Texas MD Anderson Cancer Centre (0.13), University of Pennsylvania (0.13), Harvard University (0.12), Chinese Academy of Sciences (0.11) and University of California-Los Angeles (0.11) were the main centers of institutional collaboration worldwide. If there is more cooperation among institutions from different countries, it may be helpful to make new breakthroughs in cAMP signaling system with its linkage to cancer.

 Table 2

Top ten institutions contributed to publications on cAMP signaling system with its linkage to cancer from 2009 to 2019

165Chinese Acad SciChina
260Shanghai Jiao Tong UnivChina
356Univ Texas MD Anderson Canc CtrUSA
454Seoul Natl UnivSouth Korea
549Univ Calif San DiegoUSA
745Univ Calif Los AngelesUSA
844China Med UnivChina
939Peking UnivChina
1039Eunice Kennedy Shriver Natl Inst Child Hlth & HumUSA

Analysis of cited journals

Since the influence of a journal mainly depends on its citation times, the citation analysis of journals reflects the distribution of knowledge base and important research findings in a specific field [29]. A total of 76 journals were extracted. Table 3 presents the top ten cited journals based on the citation frequency, including Journal of Biological Chemistry (J Biol Chem, 3112), Proceedings of the National Academy of Sciences of the United States of America (P Natl Acad Sci USA, 2680), Nature (2086), Cancer Research (Cancer Res, 2047), Science (1785), Cell (1688), Oncogene (1511), Plos One (1416), Molecular and Cellular Biology (Mol Cell Biol, 1413) and Biochemical and Biophysical Research Communications (Biochem Bioph Res Co, 1307). From the perspective of citation frequency and centrality, J Biol Chem (3112; 0.42), Cancer Res (2047; 0.19) and P Natl Acad Sci USA (2680; 0.12) were at the core of these 76 journals. Among the top ten cited journals, Nature (43.070) had the largest impact factor (IF), followed by Science (41.037) and Cell (36.216) respectively. According to the Journal Citation Reports (JCR) 2019 standard, six journals were classified as Q1. Eight of these journals are published in USA and two in England. USA provides a reliable platform for the publication of relevant research papers. Of the 76 journals, 34.21% of their IF (2019) were more than ten, while 22.37% were between five and ten, and the remaining 43.42% were less than five. This result indicates that a relatively large proportion of cited articles are high-quality researches and published in high-IF journals, implying that cAMP signaling is a very hot, interesting and promising field in cancer topic, which has attracted a lot of attentions of scientists all over the world.

Analysis of author information

The information of authors and co-cited authors was also analyzed by CiteSpace V. These 4306 articles were produced by 26677 authors. The top ten productive authors and the top ten authors with the largest number of citations were listed in the Table 4. Stratakis CA was the most productive author who published 46 articles, followed by Bertherat J (21), Nesterova M (11), Horvath A (11), Zhang W (10), Schuller HM (10), Al-Wadei HA (9), Stocco DM (9), Rubin JB (9) and Kawabata T (8) respectively. Most of them come from USA. However, these top ten high-yield authors together accounted for merely 3.34% of the total literatures, and only six authors had published ten or more articles during the past decade, which indicated that few high-yield researchers had devoted all their energy to the study of cAMP signaling system in cancer field. In addition, some researchers focused on cAMP and cancer studies are due to their cooperation teams, which could be found through the co-authorship network. Although the co-authorship network of this study was very fragmented (Figure 4A), some researchers still established collaborations with each other. Stratakis CA, Bertherat J, Nesterova M and Horvath A had a close cooperation from 2009 to 2012 (Figure 4B). Kawabata T, Fujita K, Sakai G, Matsushima-Nishiwaki R, Otsuka T, Kozawa O and Tokuda H worked together in 2018 (Figure 4C). Schuller HM and Al-Wadei HA had a connection from 2012 to 2013 (Figure 4D). In Figure 4C, all the authors come from Nagoya City University Graduate School of Medical Sciences and Gifu University Graduate School of Medicine in Japan. Thus, geographical location may be the main reason for the dispersion of cooperative networks.

However, the analysis of co-author relationship only provides the information about authors' outputs and collaboration situation instead of the authors' impact on the cAMP signaling system with its linkage to cancer, which can be reflected by co-cited author analysis. Two or more authors that are cited together are called co-cited authors. As shown in Table 4, Livak KJ (166) had the largest number of citation, followed by Mayr B (149), Kirschner LS (114), Wang Y (110), Shaywitz AJ (99), Li Y (94), Jemal A (91), Zhang Y (85), Stocco DM (82) and Taylor SS (75) respectively. Of these top ten co-cited authors, nine come from USA and one from China. This result shows that the research findings of USA scholars provide most abundant knowledge for the research of cAMP signaling system in cancer field. CiteSpace was also used to draw the author co-citation network map (Figure S2). The centrality of five cited-authors including Taylor SS (0.15), Mayr B (0.14), Livak KJ (0.12) Hanahan D (0.12) and Houslay MD (0.11) was greater than 0.1, indicating that they played an important connecting role in the network of co-cited authors. The articles written by Mayr B, Livak KJ and Taylor SS are not only highly cited, but also an important connecting point. For example, a review “Transcriptional Regulation by the Phosphorylation-Dependent Factor CREB” [30] written by Mayr B et al. that published in Nature Reviews Molecular Cell Biology was cited 1,724 times. This review mainly focuses on some summarized mechanisms that have mediated by CREB signal specifically. Livak KJ et al. [31] introduced the 2-ΔΔCT method which may be a convenient and useful method to analyze quantitative real-time polymerase chain reaction data in the article entitled "Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2-ΔΔCT Method ". This method was used in many researches in this field to calculate relative gene expression [32, 33, 34]. Taylor SS had an in-depth research on PKA and also published numerous high-quality papers in high impact journals [35, 36, 37].

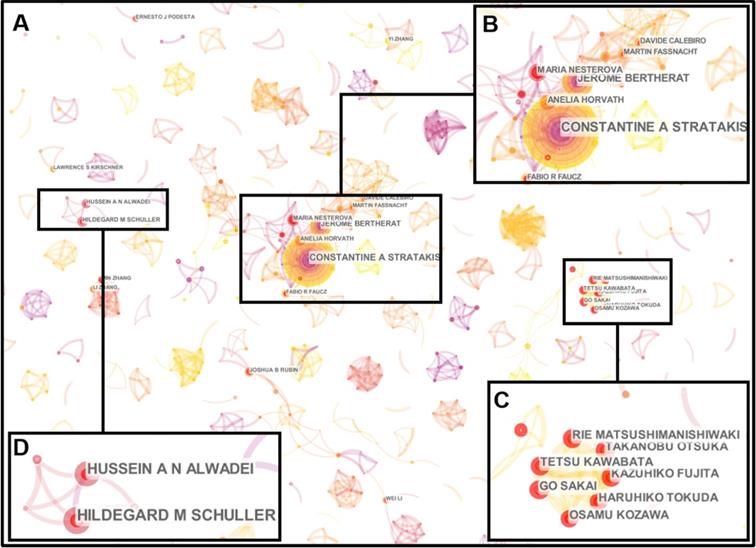

 Figure 4

Co-authorship network map. (A) The author collaboration network constructed by CiteSpace was observed with 1036 nodes and 2041 links. Each node represents an author, and each link reflects the collaboration relationship. (B) Stratakis CA, Bertherat J, Nesterova M and Horvath A had a close collaboration from 2009 to 2012. (C) Kawabata T, Fujita K, Sakai G, Matsushima-Nishiwaki R, Otsuka T, Kozawa O and Tokuda H had work together in 2018. (D) Schuller HM and Al-Wadei HA had a connection from 2012 to 2013.

J Cancer Image (Click on the image to enlarge.)
 Table 3

Top ten journals contributed to publications on cAMP signaling system in cancer field from 2009 to 2019

RankCitationCited JournalIF (2018)Journal Citation Reports (JCR)Country
13112Journal of Biological Chemistry4.106Q2USA
22680Proceedings of the National Academy of Sciences of the United States of America9.580Q1USA
42047Cancer Research8.378Q1USA
81416Plos One2.776Q3USA
91314Molecular and Cellular Biology2.705Q2USA
101307Biochemical and Biophysical Research Communications3.735Q3USA
 Table 4

The top ten active authors and co-cited authors contributed to publications on cAMP signaling system in cancer field from 2009 to 2019

RankTop 10 productive authorTop 10 co-cited author
AuthorCountryCountCo-cited authorCountryCitation
1Stratakis CAUSA46Livak KJUSA166
2Bertherat JFrance21Mayr BUSA149
3Nesterova MFrance11Kirschner LSUSA114
4Horvath AFrance11Wang YUSA110
5Zhang WChina10Shaywitz AJUSA99
6Schuller HMUSA10Li YUSA94
7Al-Wadei HAUSA9Jemal AUSA91
8Stocco DMUSA9Zhang YChina85
9Rubin JBUSA9Stocco DMUSA82
10Kawabata TJapan8Taylor SSUSA75
 Table 5

The top 20 keywords

5482gene expression0.14
9354protein kinase a0.12
13299in vitro0.06
15290breast cancer0.05
19233cancer cell0.06

Analysis of the basic contents of extracted documents

The frontiers and hotspots of cAMP research in the cancer field can be found by analyzing the results of co-occurrence keywords, co-cited references, burst terms and burst references.

Analyses of keywords and burst terms

Keywords are highly refined research content and important indicator to reflect the research theme and hotspots. There were 98 keywords extracted from 4306 articles with 98 nodes and 747 links by CiteSpace (Figure S3). The top 20 most frequently occurring keywords can be divided into four categories, 1) molecules regulating cAMP signaling pathway, including 'cAMP' (761), 'phosphorylation' (420), 'protein kinase a' (354), 'pathway' (320), 'protein' (294), 'receptor' (274), 'gene'(242) and 'CREB' (222); 2) the intervention of cAMP pathway, including 'activation' (650) and 'inhibition' (252); 3) experimental subjects, including 'cancer' (514), 'cell' (368), 'in vitro' (299), 'breast cancer' (290), 'cancer cell' (233); 4) experimental observation results, including the highest frequency word 'expression' (977), 'gene expression' (482), 'apoptosis' (400), 'proliferation' (334) and 'growth' (328) (Table 5). Among them, 'expression' (0.12), 'gene expression' (0.14), 'apoptosis' (0.13) and 'protein kinase a' (0.12) are key nodes, because their betweenness centrality are greater than 0.1, which means they play an important role in linking other keywords.

Burst term refers to a word or an article that appears to rise suddenly over a period of time, which is an important index to deduce the research frontier in the field of characteristic research [38]. 38 keywords with the strongest citation burst were extracted in this study. Burst strength and duration are two indexes to evaluate burst terms. Figure 5 was a sorted list of burst terms according to their occurrence time. Keyword emergence duration was indicated by red bars. These burst terms can be divided into 5 classes: 1) cAMP signaling pathway including 'binding protein', 'protein kinase c', 'messenger RNA', 'dependent protein kinase', 'signal transduction', 'PKA', 'element binding protein'; 2) other molecules that may be affected by cAMP pathway including 'TNF alpha', 'tumor necrosis factor', 'growth factor receptor', 'growth factor', 'necrosis factor alpha'; 3) experimental object including 'rat', 'epithelial cell', 'target', 'endothelial cell', 'tumor cell', 'breast cancer cell', 'stem cell'; 4) experimental treatment including 'activated protein kinase' , 'down regulation' , 'inhibitor', 'induction'; 5) experimental observation results including 'induced apoptosis', 'steroidogenesis', 'angiogenesis', 'migration', 'progression', 'metastasis', 'survival', 'hepatocellular carcinoma', 'lung cancer', 'carcinoma', 'therapy', 'colorectal cancer', 'cell proliferation', 'invasion', 'oxidative stress'. As shown in Figure 5, 9 keywords including 'migration', 'metastasis', 'hepatocellular carcinoma', 'lung cancer', 'carcinoma', 'therapy', 'colorectal cancer', 'invasion' and 'oxidative stress' burst after 2014 and continued to 2019. Among them, 'migration' (10.935), 'metastasis' (16.414), 'lung cancer' (10.691), 'therapy' (16.499), 'colorectal cancer' (10.779) and 'invasion' (12.0687) had relatively stronger citation bursts. The early studies focused on molecules that may be affected by cAMP signaling pathways, such as TNF alpha, tumor necrosis factor and necrosis factor alpha, whereas recent studies are more interested in experimental phenomena such as migration, metastasis, therapy, invasion, lung cancer and so on.

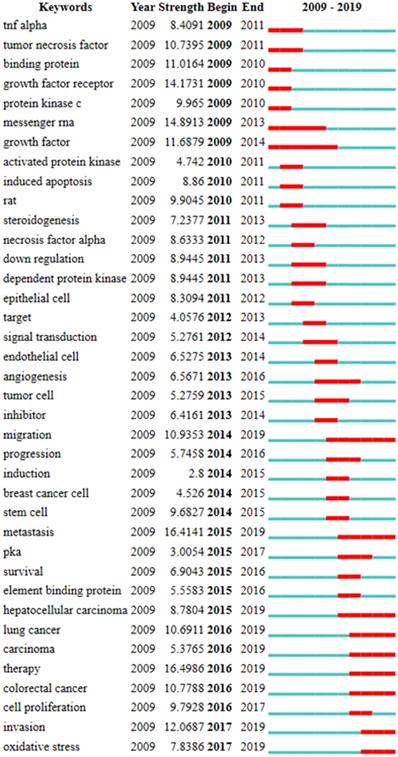

 Figure 5

The list of the top 38 keywords with the strongest citation bursts according to their occurrence time. (Note: The red bars mean these keywords cited frequently, while the blue bars mean infrequent citation.)

J Cancer Image (Click on the image to enlarge.)

Analysis of co-cited references

The literature cited together in a group of publications is called co-cited reference, which is one of the most important indicators of bibliometrics. Based on the spectral clustering algorithm, CiteSpace can be used to construct the co-cited references' citation network map. There were 630 nodes and 1781 links on this citation network map as shown in Figure 6. 128 clusters were calculated, and 16 clusters listed in Table 6 were dominant and contained a large part of these co-cited references. Modularity Q (Q value) and silhouette (S value) are two indicators to evaluate the cluster quality according to the network structure and clustering clarity. Q value is the index to evaluate the quality of the network divided into different independent modules. Generally, Q value is between zero and one. If Q value is greater than 0.300, the community structure is significant. S value is the index to evaluate the homogeneity of distinct members in the same module [28]. When S value equals to 0.700, clustering is efficient and convincing. If it is above 0.500, clustering is generally considered reasonable. When S value is infinite, in usual, the number of clustering is one, the selected network may be too small to represent only one research topic. In this cluster analysis (Table 6), Q value is 0.777 and each S value is greater than 0.500, which means the cluster result is reliable. Each cluster label was selected by index terms from the references based on log-likelihood ratio algorithm. Cluster size represented the number of references contained in each cluster. The top 10 most citation articles and their main findings were listed in Table S1.

 Table 6

The basic information of ten clusters

Cluster IDTermsSizeS valueMean (Year)
0naphthol AS-E590.8862008
1exchange protein550.8452012
2proton-sensing GPCR430.8472012
3protein kinase430.8582007
4carney complex360.9402007
5PKA enhancement360.9352007
6inhibitory neurotransmitter340.8852008
7somatic mutation340.9042012
8fibrolamellar carcinoma320.9662014
9pharmacological target300.9682010
10selective indoleamine-2260.9842013
11MAPK phosphatase-1170.9632007
12mouse skin papilloma development160.9372005
13dosage-sensitive sex reversal160.9912004
14unfavorable postoperative survival120.9942008
15protein-coupled estrogen receptor80.9822007

Burst nodes usually represent a shift in research. Top ten from the 125 references with the strongest citation bursts were listed in Table S2. Among these 125 articles, Beuschlein F et al. [39], Zhang XM et al. [40] and Horvath A et al. [41] were also listed in the top 10 references with most citations. The timeline view (Figure S4) can reflect the historical evolution trend of different clusters' cited literatures, and thus reflect the change trend of research focus. Literatures related to exchange protein (#1), proton-sensing GPCR (#2) and somatic mutation (#7) were still research hotspots until 2019. The researches related to fibrolamellar carcinoma (#8) and human indoleamine (#10) were also the focus nowadays, while the researches on naphthol AS-E (#0), carney complex (#4), ovarian cancer cell migration (#5) and beta-adrenergic receptor (#6) only attracted more attention between 2004 and 2011.

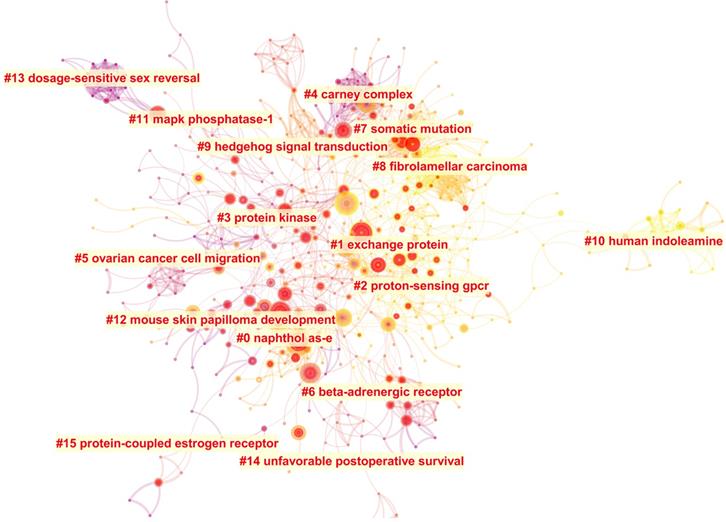

 Figure 6

The co-cited references citation network and the 16 corresponding clusters.

J Cancer Image (Click on the image to enlarge.)

Research frontiers and hotspots

According to the above results, several frontiers and hotspots of research focus on cAMP signaling system in cancer field were extracted as follows:

cAMP signaling pathway is related to cancer cell apoptosis

Generally, cAMP signaling pathway was confirmed to be inhibited in many reported cancer tissues [17]. A lot of studies have shown that if the cAMP level in cancer tissue is enhanced, the apoptosis of tumor cells can be promoted, thus inhibiting tumor growth [42,43,44]. Abudoureyimu A et al. found that As2O3 induced gastric cancer BGC-823 cell apoptosis by up regulating cAMP level and down regulating PKC level [42]. Daniel PM et al. proposed that the pharmacological activation of cAMP in glioblastoma (GBM) cells led to the increase of proapoptotic BIM (Bcl-2 interacting mediator of cell death) expression and apoptosis in specific types of GBM cells [17]. Cheng YM et al. and Follin-Arbelet V et al. showed that cAMP could induce apoptosis in multiple myeloma cells in vitro [43,44]. However, Hara M et al. showed that vasoactive intestinal peptide could prevent the progression of hepatocellular carcinoma (HCC) by increasing apoptosis through inhibiting cAMP / Bcl-xL pathway [45]. Moreover, Safa M et al. proposed that the increase of cAMP could inhibit the As2O3-induced apoptosis in acute promyelocytic leukemia cells [18]. All in all, the effect of cAMP signaling pathway on apoptosis is quite different because of different cell types. Even so, cAMP is still a possible target to inhibit the growth of many tumors.

cAMP signaling pathway is related to cancer cell metastasis

EPAC is one of the major downstream effectors that mediates cAMP signaling [46]. EPAC consists of two subtypes, EPAC1 and EPAC2. Many studies have shown that EPAC1 is related to the metastasis of cancer cells. EPAC1 could promote the metastasis of pancreatic ductal adenocarcinoma (PDA) cells by facilitating the activation and transport of integrin βr [47,48]. EPAC1 regulated the metastasis of melanoma cells through syndecan-2 translocation, heparin sulfate (HS) modification and activation of endoplasmic reticulum Ca2+ release via the phospholipase C (PLC)/ inositol triphosphate (IP3) receptor pathway [49,50,51]. In triple-negative breast cancer (TNBC) cells, the down-regulation of EPAC1 could reduce the metastasis of TNBC cell lines [52].

However, other studies had shown that overexpression of EPAC1 in bladder cancer cell lines could significantly inhibit cell metastasis without affecting cell viability [53]. The activation of cAMP/ PKA and cAMP/ EPAC1/ RAP1-GTPase pathways could inhibit the metastasis of cervical cancer cells [54]. These findings suggested that cAMP signaling pathway had both positive and negative effects on cancer metastasis, which may be related to different cell types of cancer tissues. EPAC1 may be a therapeutic target to inhibit the metastasis of cancer cells.

cAMP signaling pathway is related to Carney complex

Carney complex (CNC) is a relatively rare autosomal dominant neoplasia syndrome. It was first reported as “the complex of myxomas, spotty pigmentation (lentigines) and endocrine overeactivity” in 1985 [55]. This disease is mainly caused by mutations in PRKAR1A (the gene encoding type 1A regulatory subunit of PKA) and interference with the cAMP/PKA signaling pathway. CNC patients predisposed to a variety of tumors. Endocrine tumors are the main cancers associated with CNC, including primary pigmented nodular adrenocortical disease (PPNAD), growth-hormone secreting pituitary adenoma, thyroid and gonadal tumors. Other tumors related to CNC mainly include myxomas of the heart, psamommatous melanotic schwannomas and so on [56].

Mutations in PDE11A and PDE8B were found in CNC patients with PPNAD [57,58]. It was shown that the imbalance of cAMP/ PKA signaling pathway could co-regulate other signaling pathways, which participated in the occurrence of adrenocortical tumors [59]. In addition, the activation of cAMP/PKA signaling pathway may play an important role in hepato-pancreato-biliary tumorigenesis of CNC patients [60]. These results indicated that cAMP/PKA pathway might be the target for treatment of these lesions [61]. Some researchers had proven that cAMP analogue 8-Cl-adenosine (8-Cl-ADO) could treat CNC-related tumors by inducing apoptosis through intracellular transport and metabolism inhibition [62]. In summary, these studies mainly focus on the mechanism of tumor occurrence and treatment target of CNC patients, and provide ideas for the treatment of CNC-related tumors, in which cAMP signal pathway may be a breakthrough.

Intervening of the cAMP metabolic pathway is a potential way to treat disease or cancer

Given that the occurrence of many diseases and cancers is related to cAMP pathway, the interference of its possible target may be a promising therapeutic strategy for these diseases or cancers. For example, cAMP agonists can inhibit the growth of GBM cells [17]. The combination of tricyclic antidepressants and the inhibitor of purinergic receptor P2Y12 can delay the occurrence of GBM by increasing cAMP level [63]. The inhibitor of EPAC1 can slow down the remodeling of the heart and may be used as a treatment for cardiovascular diseases such as arrhythmia and heart failure [64]. In addition, a study showed that EPAC1 could promote the metastasis of PDA cells and suggested that EPAC inhibitors might be a potential target of anti-metastasis drugs in PDA [41]. More studies have shown that PDE inhibitors are potential drugs for the treatment of many cancers and other diseases [65-69].

PDE4 inhibitors have been proved to have many functions as follows: 1) reverse the memory impairment caused by β-amyloid peptide through weakening the inflammation and apoptosis of neurons; improve memory loss and cognitive function in patients with Alzheimer's disease [70,71]; 2) inhibit rheumatoid arthritis by reducing the tumor necrosis factor α (TNF-α) produced by human synovial cells [72]; 3) treat airway inflammation, such as asthma and chronic obstructive pulmonary diseases through inhibiting the release of TNF-α by human peripheral blood mononuclear cells, the proliferation of lymphocytes and the production of cytokines [73]; 4) treat metabolic diseases related to aging [74,75]; 5) treat alcoholic fatty liver disease and nonalcoholic fatty liver disease [75-77] and so on. In addition, zardaverine, a double selective PDE3/4 inhibitor, can induce cell cycle arrest in G0/G1 phase of HCC cells by regulating cyclin [78]. In addition, some studies demonstrate that CREB is an important regulatory factor in tumorigenesis and development which is suggested to be a novel target for cancer therapy [79]. As an inhibitor of CREB-mediated gene transcription [80], naphthol AS-E could be used to inhibit breast cancer bone metastasis, acute leukemia cell viability, and so on [81-84]. According to the publications analyzed in this study, tumors and cancers associated with cAMP signaling system in various human body systems are summarized and drawn in Figure 7. Therefore, the treatment targeting cAMP signaling system may be a potential universal approach for fighting against various cancers and other diseases.

Strengths and limitations

As far as we know, this study is the first bibliometric analysis of the researches related to cAMP signaling system in cancer field. Compared with the traditional literature review, the bibliometric analysis by CiteSpace is more comprehensive and intuitive. However, this study still has some limitations. 1) This study only extracts the literature from the Web of Science Core Collection database. 2) We only selected articles published in English. 3) CiteSapce for bibliometric analysis is only based on the main information on the literature, not the full text. 4) The clustering is although reasonable in terms of Q value and S value, there are still some biases.

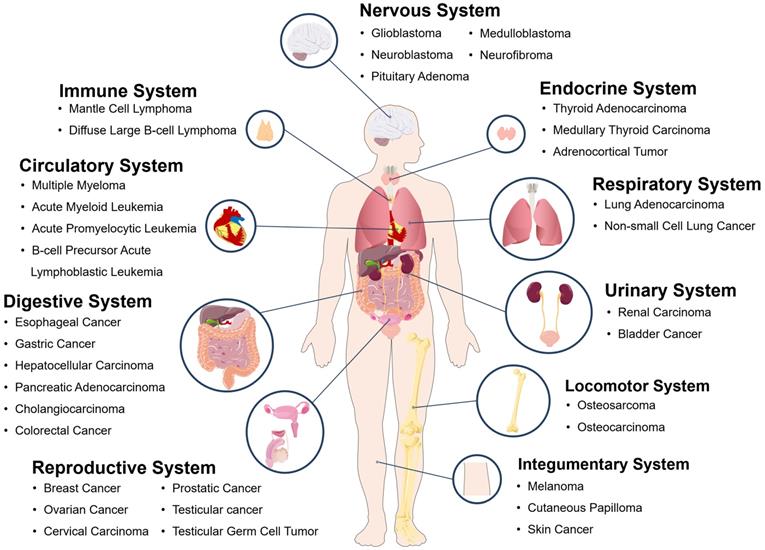

 Figure 7

Some tumors and cancers related to cAMP signaling pathway system in various human body systems.

J Cancer Image (Click on the image to enlarge.)


In summary, this study helps us to understand the basic current research situation of cAMP signaling system in cancer field from 2009 to 2019. The number of related literatures published each year is relatively stable. In the past decade, USA contributed the most to the research on cAMP signaling system in cancer field, followed by China and Japan. The top three most productive journals were J Biol Chem, P Natl Acad Sci and Nature. Cooperation between the institutions from different countries needs to be strengthened. Lots of corresponding researches in this field are focused on the apoptosis, metastasis of cancer cell and Carney complex, suggesting that cAMP may become an ideal target for contemporary therapies for cancer and tumor diseases.


cAMP: cyclic adenosine monophosphate; ACs: adenylyl cyclases; PDEs: phosphodiesterases; PKA: cAMP-dependent protein kinase; EPACs: exchange proteins directly activated by cAMP; CNGC: cyclic nucleotide-gated ion channels; CREB: cAMP response element binding protein; GBM: glioblastoma; BIM: Bcl-2 interacting mediator of cell death; HCC: hepatocellular carcinoma; PDA: pancreatic ductal adenocarcinoma; HS: heparin sulfate; PLC: phospholipase C; IP3: inositol triphosphate; TNBC: triple-negative breast cancer; CNC: carney complex; PPNAD: primary pigmented nodular adrenocortical disease; 8-Cl-ADO: 8-Cl-adenosine; TNF-α: tumor necrosis factor α.

Supplementary Material


Supplementary figures and tables.


This work was financially supported by the National Natural Science Foundation of China (31800027), the Natural Science Foundation of Hubei Province (2018CFB131), and the Independent Research Project of Wuhan University School of Health Science (ZZKY006).

Author contributions

All authors read and approved the manuscript. J.S. and C.W. conceived the study and participated in its design, co-ordination and editing. C.T. was responsible for formal analysis, visualization and writing the manuscript. D.L., Y.F., J.Y. and C.L. were responsible for the literature screening and participated in the operation of software.

Competing Interests

The authors have declared that no competing interest exists.
