J Cancer 2017; 8(11):1988-1994. doi:10.7150/jca.18900
Clinical Impact of Vitamin K Dosing on Sorafenib Treatment for Hepatocellular Carcinoma
1. Department of Gastroenterology and Hepatology, Osaka General Medical Center, Osaka, Japan
2. Department of Diagnostic Imaging, Osaka General Medical Center, Osaka, Japan
Haruna Y, Hasegawa N, Imanaka K, Kawamoto S, Inoue A. Clinical Impact of Vitamin K Dosing on Sorafenib Treatment for Hepatocellular Carcinoma. J Cancer 2017; 8(11):1988-1994. doi:10.7150/jca.18900. Available from http://www.jcancer.org/v08p1988.htm
Background: Some researchers have suggested that vitamin K enhances the antitumor effect of sorafenib for hepatocellular carcinoma (HCC) in vitro and in vivo. In this study, we examined the clinical impact of vitamin K dosing for sorafenib treatment.
Methods: Twenty-nine out of 65 patients treated with sorafenib for HCC were simultaneously dosed with vitamin K. We retrospectively investigated progression-free survival (PFS) and overall survival (OS) in the vitamin K-dosed group and sorafenib alone group. We also examined the changes in serum des-γ-carboxy prothrombin (DCP) levels, which vitamin K is involved with.
Results: The median PFS was prolonged in the sorafenib + vitamin K group compared with the sorafenib alone group (6.0 months and 2.0 months, respectively; P<0.001, hazard ratio〔HR〕: 0.25). The median OS was also significantly extended (12.5 months vs. 10.0 months; P=0.009, HR: 0.47). Despite suppressed tumor growth, serum DCP levels had increased in cases of disease-controlled patients in the sorafenib alone group 8 weeks after the beginning of treatment, (2.28±0.91 to 2.64±1.03, P= 0.048). In contrast, the serum DCP levels of the sorafenib + vitamin K group had declined both in patients with controlled disease and in patients with progressive disease (1.97±0.57 to 1.29±0.28, P=0.002 and 2.90±1.32 to 1.78±0.53, P=0.034, respectively).
Conclusions: To the best of our knowledge, this is the first clinical report showing enhanced antitumor action of sorafenib by vitamin K. Our clinical findings suggest that vitamin K may have the synergistic effect by suppressing production of DCP, a tumor growth and angiogenesis factor.
Keywords: hepatocellular carcinoma, vitamin K, sorafenib, des-γ-carboxy prothrombin, tumor ischemia
Hepatocellular carcinoma (HCC) is globally the third leading cause of cancer-related mortality [1,2]. Early-stage HCC is suitable for surgical resection or locoregional treatment (radiofrequency ablation or percutaneous ethanol infusion), and a favorable prognosis can be obtained (5-yr survival: 40-70%). Multinodular HCC (intermediate stage) is indicated for transarterial chemoembolization (TACE). However, advanced-stage HCC with extrahepatic spread (nodal metastasis or other organ metastasis), vascular invasion, or TACE-failure is treatable only with sorafenib systemic chemotherapy (Nexavar, Bayer HealthCare Pharmaceuticals, Leverkusen, Germany) .
Sorafenib, a multikinase inhibitor, is a molecular-targeting anti-cancer agent that inhibits the serine-threonine kinase Raf and the tyrosine kinase activity of vascular endothelial growth factor (VEGF) receptors, leading to suppression of cancer cell proliferation and tumor angiogenesis [4,5]. However, the anti-cancer effect of sorafenib is limited despite its frequent adverse events. Llovet et al. reported that median overall survival (OS) was 10.7 months in the sorafenib group and 7.9 months in the placebo group in a clinical study of HCC patients in Europe, America and Australia . Cheng et al. reported that median OS was 6.5 months in sorafenib-treated patients and 4.2 months in control patients in a clinical trial in the Asia-Pacific region . These studies showed that the median OS in sorafenib-treated HCC patients was prolonged by a few months. Thus, more efficient anticancer agents or modified sorafenib therapies are desired.
Some reports have shown that vitamin K can inhibit cell proliferation and the growth of HCC in vitro and in vivo [8-11]. Furthermore, Habu et al. reported that vitamin K dosing suppressed hepatocarcinogenesis among cirrhotic patients . Some authors have suggested that vitamin K dosing could prevent HCC recurrence after curative treatment [13,14]. In contrast, Yoshida, et al. threw doubt upon the preventive effect of vitamin K on HCC recurrence .
On the other hand, Wei et al. reported that a combination of vitamin K and sorafenib strongly induced growth inhibition and apoptosis of HCC cells due to inhibition of the Raf/mitogen-activated protein kinase kinase/Phospho-extracellular signal regulated kinase. They showed marked tumor growth suppression of transplanted HCC in rats treated with vitamin K plus sorafenib compared with rats treated with sorafenib alone or vitamin K alone . Carr et al. suggested that the c-Met-PI3K-Akt signaling pathway mediates inhibitory c-Raf phosphorylation that may induce the synergistic action of vitamin K and sorafenib . A report from another group also showed that sorafenib plus vitamin K treatment markedly inhibited migration and proliferation of HCC cells in vitro .
Vitamin K supplementation is believed to sustain bone mineral density and to prevent osteoporotic fracture [19,20]. Therefore, in Japan, vitamin K is often administered to cirrhotic patients as a precaution against osteoporosis. We have observed some cases of simultaneous sorafenib and vitamin K dosing. In this study, we retrospectively examined the clinical impact of vitamin K dosing on sorafenib treatment for hepatocellular carcinoma.
Vitamin K is also involved with des-γ-carboxy prothrombin (DCP) production. We also examined how vitamin K dosing influenced the serum DCP levels during treatment.
Patients and Methods
We investigated all 65 patients who underwent sorafenib treatment with HCC stages of Barcelona Clinic Liver Cancer (BCLC)-B or BCLC-C in the Osaka General Medical Center from May 29, 2009 until May 31, 2016 [21,22]. The patients had had no indication for surgical operation, transarterial embolization (TACE) or radio-frequency ablation. Forty-one patients (63%) with advanced stage (BCLC-C) were treated with sorafenib according to the EASL-EORTC clinical practice guidelines: Management of hepatocellular carcinoma . Additional 24 patients (37%) with intermediate stage (BCLB-B) who had been given a TACE failure status were also treated with sorafenib. TACE failure status was defined as more than two consecutive incomplete necrosis results (more than 50% of the tumor stain remaining) observed within the treated tumors by response-evaluation computed tomography (CT) 4 weeks after TACE or more than two consecutive appearances of a new lesion (recurrence) observed in the liver by response-evaluation CT 4 weeks after TACE . Based on our sorafenib dosing criteria, an initial dose of sorafenib was given at 800 mg daily, whereas 400 mg was administered to patients who were older than 80 years, weighed less than 50 kg or had Child-Pugh status B to avoid adverse events due to overdosing. Forty-three patients (66%) were given an initial dose of 800 mg of sorafenib, while 22 patients (34%) received an initial dose of 400 mg of sorafenib. Forty-eight patients (74%) had Eastern Cooperative Oncology Group (ECOG) performance status (PS) 0, 11 (17%) had PS 1, and 6 (9%) had PS 2 before sorafenib administration. Regarding Child-Pugh status at baseline, 54 (83%) had Child-Pugh A, and 11 (17%) had Child-Pugh B. Twenty-one (32%) showed macroscopic vascular invasion, and 25 (38%) had extrahepatic spread (lymph node: 9, bone: 6, lung: 6, adrenal gland: 4, spleen: 1, peritoneum: 1). Twenty-nine (45%) out of the 65 patients had simultaneous dosing of sorafenib and vitamin K (Gla-kay, Eizai Co., Ltd., Tokyo, Japan). Vitamin K dosing began in 5 patients prior to the start of sorafenib treatment, began concurrently in 21 patients, and began after sorafenib treatment in 3 patients.
Outcomes and assessments
In all cases, radiologic tumor evaluation was performed according to the modified Response Evaluation Criteria in Solid Tumors (RECIST)  by dynamic contrast-enhanced CT or EOB magnetic resonance imaging, within 2 weeks before the start of sorafenib dosing, and was repeated every 4 to 8 weeks after the start of treatment until tumor progression. The radiologic review was independently performed by a radiologist and hepatologists. Progression-free survival (PFS) was defined as the time from the start of sorafenib dosing to radiologic progression. OS was assessed from the date of sorafenib dosing until the date of death from any cause. The disease control rate was shown as the percentage of patients with complete response, partial response or stable disease that was maintained for at least 4 weeks. Safety was assessed using Common Terminology Criteria for adverse events version 3.0.
The serum DCP levels were tested by ECLIA (Wako Pure Chemical Industries, Ltd., Osaka, Japan). We examined the changes in serum DCP levels before and 8 weeks after the beginning of treatment.
All patients provided written informed consent for the study before the start of sorafenib dosing. The study was approved by the ethics committee of Osaka General Medical Center and complied with the Declaration of Helsinki and local laws.
The Kaplan-Meier method and the log-rank test were used to analyze the impact of vitamin K dosing on PFS and OS of sorafenib-treated patients. The Cox proportional-hazards model was used to assess the interaction between PFS or OS and characteristics at baseline. The Chi-square test, Fisher's exact test, Student's t test and Mann-Whitney U test were used for analysis of baseline characteristics, disease control rates and adverse events. To evaluate the change in serum DCP levels, the paired t-test was performed after logarithmic transformation.
Impacts of vitamin K dosing and baseline characteristics on the PFS and OS of sorafenib-treated patients
We evaluated the impacts of vitamin K dosing and baseline characteristics, including Child-Pugh status, ECOG performance status, presence of extrahepatic spread of the HCC, presence of macroscopic vascular invasion, age and initial dose of sorafenib, on the PFS and OS of the sorafenib-treated patients. Multivariate analysis with the use of Cox proportional-hazard model showed that vitamin K dosing (P<0.001, hazard ratio [HR]: 0.16, 95% CI 0.08-0.32) and presence of macroscopic vascular invasion (P=0.004, HR: 2.55, 95% CI 1.34-4.82) influenced PFS of the sorafenib-treated patients significantly (Table 1A). It also showed that the vitamin K dosing (P=0.003, HR: 0.38, 95% CI 0.20-0.73), ECOG performance status (P=0.005, HR: 0.36, 95% CI 0.17-0.73) and presence of macroscopic vascular invasion (P<0.001, HR: 3.81, 95% CI 2.00-7.26) influenced OS significantly (Table 1B). It was revealed that the vitamin K dosing during sorafenib treatment was one of independent factors to improve the prognosis of the patients.
Multivariate analysis for the outcome of sorafenib treatment with the use of Cox proportional-hazard model
|Hazard Ratio (95% CI)||P Value|
|A: Progression-free Survival|
|Vitamin K dosing||0.16 (0.08 - 0.32)||<0.001|
|Child-Pugh status (A vs. B)||0.95 (0.46 - 1.95)||0.88|
|ECOG performance status (0 vs. 1 or 2)||0.86 (0.45 - 1.61)||0.64|
|Extrahepatic spread||0.96 (0.54 - 1.71)||0.89|
|Macroscopic vascular invasion||2.55 (1.34 - 4.82)||0.004|
|Age||0.97 (0.94 - 1.00)||0.06|
|Initial dose of sorafenib||0.65 (0.35 - 1.21)||0.18|
|B: Overall Survival|
|Vitamin K dosing||0.38 (0.20 - 0.73)||0.003|
|Child-Pugh status (A vs. B)||0.77 (0.34 - 1.75)||0.53|
|ECOG performance status (0 vs. 1 or 2)||0.36 (0.17 - 0.73)||0.005|
|Extrahepatic spread||1.42 (0.75 - 2.71)||0.28|
|Macroscopic vascular invasion||3.81 (2.00 - 7.26)||<0.001|
|Age||1.01 (0.98 - 1.05)||0.60|
|Initial dose of sorafenib||1.01 (0.54 - 1.89)||0.98|
ECOG: Eastern Cooperative Oncology Group.
Baseline Characteristics of the Patients
|Gender, n (%)||0.74|
|Male||22 (76)||26 (72)|
|Female||7 (24)||10 (28)|
|ECOG performance status, n (%)||0.84|
|0||22 (76)||26 (72)|
|1||5 (17)||6 (17)|
|2||2 (7)||4 (11)|
|Cause of disease, n (%)||0.97|
|HCV infection||20 (69)||23 (64)|
|HBV infection||4 (14)||5 (14)|
|Alcohol||3 (10)||5 (14)|
|Other||2 (7)||3 (8)|
|BCLC stage, n (%)||0.71|
|B (intermediate)||10 (34)||14 (39)|
|C (advanced)||19 (66)||22 (61)|
|Macroscopic vascular invasion, n (%)||10 (34)||11 (31)||0.53|
|Extrahepatic spread, n (%)||10 (34)||15 (42)||0.55|
|Child-Pugh status, n (%)||0.40|
|A||25 (86)||29 (81)|
|B||4 (14)||7 (19)|
|Initial dose of sorafenib||0.92|
|800mg daily, n (%)||19 (66)||24 (67)|
HBV: hepatitis B virus. HCV: hepatitis C virus. BCLC: Barcelona Clinic Liver Cancer. ECOG: Eastern Cooperative Oncology Group.
Baseline characteristics of the sorafenib + vitamin K and the sorafenib alone groups
There were no relevant differences between the sorafenib + vitamin K group and the sorafenib alone group in baseline characteristics, including age, gender, ECOG performance status, cause of disease, BCLC stage, macroscopic vascular invasion, extrahepatic spread, Child-Pugh status, serum alpha fetoprotein levels or initial dose of sorafenib (Table 2).
Response rates and disease control rates
No complete response was observed in the study. In the sorafenib + vitamin K group, 10 (34%) patients obtained a partial response (PR), 10 (34%) had stable disease (SD) and 9 (31%) had progressive disease (PD). In contrast, in the sorafenib alone group, 5 (14%) had a PR, 5 (14%) had SD and 25 (69%) had PD. Disease control rates were 69% in the sorafenib + vitamin K group and were 23% in the sorafenib alone group (P<0.001) (Table 3).
Response rates by modified RECIST
|Sorafenib+vitamin K (n=29)||Sorafenib alone (n=36)|
|Complete response n (%)||0 (0)||0 (0)|
|Partial response n (%)||10 (34)||5 (14)|
|Stable disease n (%)||10 (34)||5 (14)|
|Progressive disease n (%)||9 (31)||25 (69)|
|Not assessable n (%)||0 (0)||1 (3)|
|aDisease control rate n (%)||20 (69.0)||8 (22.9)|
RECIST: Response Evaluation Criteria in Solid Tumors
Progression-free survival and overall survival
The median PFS was prolonged in the sorafenib + vitamin K group compared with the sorafenib alone group (6.0 months, 95% CI 3.7-8.3 vs. 2.0 months, 95% CI 1.4-2.6; P<0.001 by log-rank test), and the hazard ratio was 0.25 (95% CI 0.14-0.46) (Fig. 1A).
The median OS was also significantly extended in the sorafenib + vitamin K group compared with the sorafenib alone group (12.5 months, 95% CI 5.4-19.6 vs. 10.0 months, 95% CI 5.9-14.1; P = 0.009), and the hazard ratio was 0.47 (95% CI 0.26-0.85) (Fig. 1B).
Serum DCP change
We examined the changes in serum DCP levels before and 8 weeks after the beginning of treatment. In the sorafenib + vitamin K group, both patients with PR or SD and patients with PD had significant decline of the serum DCP levels (mean±S.D. [Log mAU/mL]: 1.97±0.57 to 1.29±0.28, P=0.002 and 2.90±1.32 to 1.78±0.53, P=0.034, respectively) (Fig. 2A, Fig. 2B). In contrast, in the sorafenib alone group, the serum DCP levels increased significantly in patients with PR or SD as well as in patients with PD (mean±S.D. [Log mAU/mL]: 2.28±0.91 to 2.64±1.03, P= 0.048 and 2.65±0.95 to 3.14±1.17, P= 0.020, respectively) (Fig. 2C, Fig. 2D).
Kaplan-Meier curves of progression-free survival (A) and overall survival (B). (A) The median progression-free survival time was prolonged in the vitamin K-dosed group (n=29) compared with the sorafenib alone group (n=36) (6.0 months, 95% CI 3.7-8.3 months vs. 2.0 months, 95% CI 1.4-2.6 months; P<0.001 by log-rank test), and the hazard ratio was 0.25 (95% CI 0.14-0.46). (B) The median overall survival time was also significantly extended (12.5 months, 95% CI 5.4-19.6 months vs. 10.0 months, 95% CI 5.9-14.1 months; P = 0.009), and the hazard ratio was 0.47 (95% CI 0.26-0.85).(Click on the image to enlarge.)

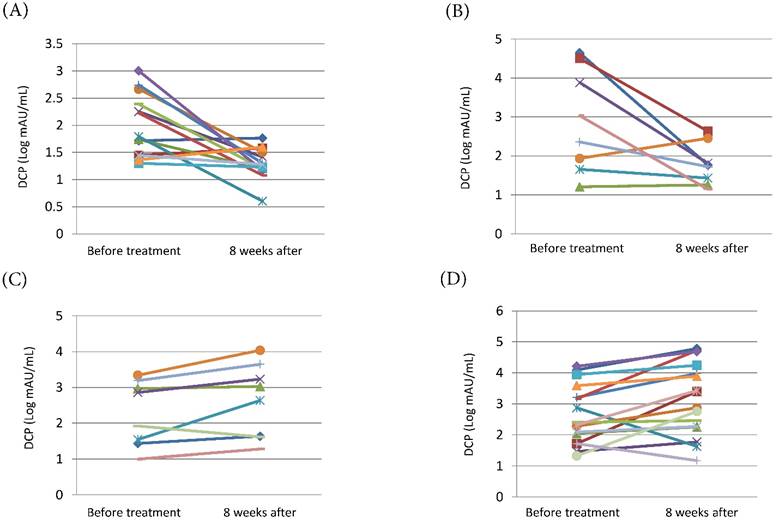

Change in serum DCP levels before and 8 weeks after the beginning of treatment. (A) Patients with PR or SD of the sorafenib + vitamin K treatment group (n=14). (B) Patients with PD of the sorafenib + vitamin K group (n=8). (C) Patients with PR or SD of the sorafenib alone treatment group (n=8). (D) Patients with PD of the sorafenib alone treatment group (n=16). In the sorafenib + vitamin K group, 22 patients were available because they concurrently started sorafenib and vitamin K dosing, and serum DCP levels were tested just before and 8 weeks after the beginning of the treatment. In the sorafenib alone group, 24 patients were available because their serum DCP levels were tested just before and 8 weeks after the beginning of the treatment. The change of DCP levels (mean±S.D. [Log mAU/mL]) were 1.97±0.57 to 1.29±0.28 (P=0.002) (A), 2.90±1.32 to 1.78±0.53 (P=0.034) (B), 2.28±0.91 to 2.64±1.03 (P= 0.048) (C), and 2.65±0.95 to 3.14±1.17 (P= 0.020) (D). To evaluate the change in serum DCP levels, a paired t-test was performed for log-transformed measures with normal distribution.(Click on the image to enlarge.)
Incidence (percent) of drug-related adverse eventsa
|Adverse event||Sorafenib+vitamin K||Sorafenib alone||P value|
|Any Grade||Grade 3/4||Any Grade||Grade 3/4||Any Grade||Grade 3/4|
|Pancreatic amylase elevation||24||14||19||11||0.65||0.50|
a Drug-related adverse events that occurred in at least 5% of patients in either group were listed. They were assessed using Common Terminology Criteria for adverse events version 3.0.
NA: not applicable
Table 4 shows all drug-related adverse events that occurred in at least 5% of patients in either group. Hand-foot skin reaction, liver dysfunction, diarrhea, serum pancreatic amylase elevation, hypertension, rash/desquamation, fatigue, hoarseness, and alopecia were observed during medication. Overall, the incidence of drug-related adverse events of any grade was 83% in the sorafenib + vitamin K group and 89% in the sorafenib alone group. The incidence of each adverse event was similar in the two groups. However, the incidence of grade 3/4 hand-foot skin reaction and grade 3/4 liver dysfunction in the sorafenib + vitamin K group tended to be lower than in the sorafenib alone group. Overall, the incidence of grade 3/4 adverse events was significantly lower in the sorafenib + vitamin K group (45% vs. 69%, P=0.045).
Some studies showed that vitamin K dosing enhanced the antitumor effect of sorafenib in vitro and in vivo in animal studies [16-18]. However, there has been no report about the clinical impact of vitamin K dosing for sorafenib-treated patients. Some of the patients in this study, whom we treated with sorafenib for HCC, received vitamin K dosing simultaneously. We retrospectively studied the influence of vitamin K dosing on antitumor action, cancer prognosis and the incidence of adverse events to clarify the impact of vitamin K dosing during sorafenib treatment. Multivariate analysis with the use of Cox proportional-hazard model revealed that the vitamin K dosing during sorafenib treatment was one of independent factors to improve the prognosis of the patients, as absence of vascular invasion or preferable ECOG performance status. We found significantly prolonged PFS (2.0 months vs. 6.0 months) and OS (10.0 months vs. 12.5 months) with no relevant difference in baseline characteristics between the sorafenib alone group and the sorafenib + vitamin K group. Regarding safety, we did not observe any difference in incidence of drug-related adverse events between sorafenib-alone group and sorafenib + vitamin K group. The overall incidence of grade 3/4 adverse events was lower in sorafenib + vitamin K group rather than in sorafenib-alone group.
We have some reports suggesting that DCP, which is one of the popular tumor markers for HCC, is an autologous growth factor for HCC [26,27] and a paracrine factor for tumor angiogenesis [28-30]. DCP released from tumor cells is shown to bind to Met on the tumor cells and kinase insert domain receptor on vascular endothelial cells, resulting in tumor cell proliferation and endothelial cell proliferation and migration. Additionally, Ma et al. showed that vitamin K inhibits the growth of hepatocellular carcinoma via a decrease of DCP in vitro . We speculated that the benefit of vitamin K dosing for sorafenib treatment might be associated with DCP levels from tumor cells. We focused on the change of serum DCP levels during anticancer treatment. The serum DCP levels were increased by sorafenib-alone treatment in disease-controlled patients as well as in patients with PD. The paradoxical phenomenon, DCP elevation despite suppressed tumor growth, could be explained as the following. Vitamin K is an essential co-factor in prothrombin production from its precursor, DCP. Because HCC tumor cells possess an impaired vitamin K uptake system, prothrombin production is suppressed due to the lack of vitamin K inside tumor cells, followed by accumulation and release of DCP . Thus, DCP can be a tumor marker for HCC. Sorafenib deteriorates tumor angiogenesis and puts tumor cells in an ischemic state [4,5]. Murata et al. showed that hypoxia further decreases the vitamin K uptake of tumor cells and leads to more accumulation and release of DCP . However, augmented DCP release could provide an advantage for tumor cells to survive because DCP works as a tumor growth factor [26,27] and an angiogenesis enhancing factor [28-30]. Sorafenib's antitumor action may be limited by elevation of DCP.
In contrast, we found a remarkable decline in the serum DCP levels both in patients with disease-controlled patients and in patients with PD of the sorafenib + vitamin K group. According to in vitro study by Murata et al., high-dose vitamin K administration elevates the vitamin K concentration inside tumor cells in a dose-dependent manner and suppresses DCP accumulation and release . Vitamin K dosing could enhance the antitumor action of sorafenib by suppressing DCP levels.
To the best of our knowledge, this is the first clinical report showing the beneficial impact of vitamin K dosing during sorafenib treatment for patients with HCC. The vitamin K, a nontoxic agent, might be involved with pathobiology of sorafenib treatment for HCC via DCP production.
HCC: hepatocellular carcinoma; OS: overall survival; PFS: progression-free survival; DCP: des-γ-carboxy prothrombin; BCLC: Barcelona Clinic Liver Cancer; ECOG: Eastern Cooperative Oncology Group; PS: performance status; PR: partial response; SD: stable disease; PD: progressive disease.
Conception and design: Yoshimichi Haruna, Atsuo Inoue
Collection and assembly of data: Yoshimichi Haruna, Noriko Hasegawa, Atsuo Inoue
Analysis and interpretation of data: Yoshimichi Haruna, Kazuho Imanaka, Atsuo Inoue, Seiichi Kawamoto
Drafting of the manuscript: Yoshimichi Haruna, Atsuo Inoue
Approval of the final version of the manuscript: All authors
The authors have declared that no competing interests exist.
