J Cancer 2021; 12(6):1846-1852. doi:10.7150/jca.46868 This issue Cite

Research Paper

Combination of oncolytic adenovirus targeting SATB1 and docetaxel for the treatment of castration-resistant prostate cancer

Lijun Mao1#, Haiyuan Yu1#, Sai Ma1#, Ziyang Xu1, Fukun Wei1, Chunhua Yang2 Corresponding address, Junnian Zheng2 Corresponding address

1. Department of Urinary Surgery, the Affiliated Hospital of Xuzhou Medical University, Xuzhou, 221000, China.
2. Jiangsu Key Laboratory of Biological Cancer Therapy, Xuzhou Medical College, Xuzhou 221002, China.
#These authors contributed equally to this work.

Citation:
Mao L, Yu H, Ma S, Xu Z, Wei F, Yang C, Zheng J. Combination of oncolytic adenovirus targeting SATB1 and docetaxel for the treatment of castration-resistant prostate cancer. J Cancer 2021; 12(6):1846-1852. doi:10.7150/jca.46868. https://www.jcancer.org/v12p1846.htm
Other styles

File import instruction

Abstract

Graphic abstract

Background: Oncolytic viral therapy is a new strategy for tumor eradication which combines the advantages of viral therapy and gene therapy. Silencing SATB1 exhibits strong inhibitory effect on the growth of prostate cancer. Docetaxel (DTX) is the gold standard for chemotherapy of prostate cancer, but its side effects decrease the life quality of patients. Therefore, it is urgent to develop combination therapy to increase its anti-tumor effect.

Methods: Oncolytic adenovirus targeting SATB1 was constructed and named ZD55-SATB1. Human prostatic cancer cells DU145 and PC-3 and human prostatic stromal cells WPMY-1 were treated with ZD55-SATB1 or/and DTX. In vitro cell proliferation, migration, invasion, apoptosis were detected. In addition, PC-3 cells were injected subcutaneously into nude mice, which were treated with ZD55-SATB1 or/and DTX. Tumor growth was monitored in vivo.

Results: ZD55-SATB1 combined with DTX inhibited proliferation, migration and invasion of DU145 and PC-3 cells, while promoted apoptosis of DU145 and PC-3 cells more efficiently than monotherapy. ZD55-SATB1 had no cytotoxicity on WPMY-1 cells. In animal models, the combined treatment of ZD55-SATB1+DTX and endocrine therapy effectively inhibited the growth of xenograft tumor, accompanied by increased expression of caspase-3 and caspase-8, and decrease expression of Bcl-2 and angiogenesis marker CD31 compared to other treatment groups.

Conclusion: The combination of oncolytic adenovirus ZD55-SATB1 and chemotherapy provides a novel approach to effective therapy of prostate cancer.

Keywords: SATB1, docetaxel, oncolytic adenovirus, prostate cancer

Introduction

The incidence of prostate cancer has raised up to the second of malignant tumor in men, and its mortality rate is the fifth highest worldwide [1]. The diagnostic rate of prostate cancer has increased recently due to the screening of prostate specific antigen (PSA). The optimal treatment for late stage prostate cancer is endocrine therapy. Many prostate cancer patients are initially sensitive to endocrine therapy and experience temporary tumor regression, but nearly all patients develop castration-resistant prostate cancer (CRPC) accompanied by bone metastasis or distant metastasis [2]. Docetaxel (DTX) is one of the effective chemotherapy drugs for CRPC [3]. Prostate tumor volume was reduced by an average of one third after DTX treatment but tumor remission is reported due to drug resistance to DTX [4].

SATB1 (special AT-rich sequence binding-protein 1) is a global chromatin organizer that could regulate gene expression and chromatin structure [5]. SATB1 is abnormally overexpressed in a variety of cancers and is proposed as an oncogene to promote tumor growth and invasion [6-10]. Therefore, SATB1 became a target for cancer therapy.

Gene viral therapy of cancer is a new strategy for tumor eradication which combines the advantages of viral therapy and gene therapy. Oncolytic adenovirus can self-replicate in tumor cells, lyse tumor cells and infect neighboring tumor cells. Oncolytic adenovirus has high anti-tumor efficacy and safety [11]. In particular, E1B55-kDa gene defective oncolytic adenoviruses (Ad-ZD55) not only efficiently infects and replicates in tumor cells, but also amplifies IL-24 gene to enhance the expression and function of IL-24 in tumor microenvironment without affecting adjacent normal cells [12].

In this study, we constructed oncolytic adenovirus carrying SATB1 named as Ad-ZD55-SATB1 (ZD55-SATB1) and combined it with chemotherapeutic drug DTX to explore the effects on proliferation, invasion, and apoptosis of prostate cancer cells in vitro and in vivo.

Materials and Methods

Cell culture

Human prostatic cancer cell line DU145 and PC-3, and human prostatic stromal cell line WPMY-1 were obtained from Chinese Academy of Sciences and cultured in RPMI-1640 or DMEM medium with 10% fetal bovine serum (Gibco, USA) at 37°C in a humidified incubator with 5% CO2. DTX was obtained from Jiangsu Hengrui Medicine Co, Ltd.

Recombinant adenoviruses

ZD55-SATB1 and ZD55-EGFP were provided by Jiangsu Key Laboratory of Biological Cancer Therapy, the viruses were purified using Adenovirus Purification Mini Kit (Biomiga, Inc. CA, USA) and stored at 4°C. The virus titer was measured using QuickTiterTM Kit (Cell Biolabs, CA, USA).

Cell viability assay

Cell proliferation was tested by Cell Counting kit‑8 (CCK‑8) assay. DU145, PC-3, and WPMY-1 cells were seeded in 96-well plates and cultured for 24 h. Then cells were treated with DTX (1 ng/mL) or/and ZD55-SATB1 or ZD55-EGFP at 10 multiplicity of infection (MOI) for 24, 48, 72 and 96 h. After incubation with CCK-8 solution the absorbance at 450 nm was measured.

Cell invasion and migration assay

PC-3 and DU145 cells were seeded in the top of matrigel-coated and uncoated (BD Biosciences; Bedford, MA, USA) transwell chambers (Corning, Corning, NY, USA), and the lower chamber was filled with 20% FBS in RPMI 1640 medium. After incubation for 24 h, cells that had invaded or migrated into the lower chamber were fixed in 4% paraformaldehyde and stained with crystal violet. Stained cells were counted under microscopy.

Apoptosis assay

PC-3 and DU145 cells were harvested after 48 h of treatment and stained using Annexin V-FITC/propidium iodide double staining kit (Keygen Biotech; Nanjing, China). Stained cells were immediately subjected to flow cytometry.

Western blot analysis

Cells were lysed in lysis buffer with protease inhibitor, and equal amounts of lysates were separated by SDS-PAGE and transferred onto the membranes, which were incubated with antibodies for SATB1 (Abcam, UK, #ab109122), MMP-2 (Abcam, UK, #ab92536), Vimentin (Abcam, UK, #ab137321), E-Cadherin (Abcam, UK, # ab201499), Bcl-2 (Abcam, UK, #ab194583), caspase-3 (Abcam, UK, #ab197202), caspase-8 (Abcam, UK, #ab108333), GAPDH (Abcam, UK, #ab37168). The blots were washed, incubated with secondary antibodies (Abcam, UK), and developed using enhanced chemiluminescence (ECL) system (Pierce, Rockford, IL, USA).

Subcutaneous tumor model in mice

Male BALB/c nude mice (5 weeks old) were purchased from Vital River Laboratory (Beijing, China) and quarantined for a week. Experimental procedures were approved by Committee of Care and Use of Laboratory Animals of Xuzhou Medical University. 1×106 PC-3 cells were injected subcutaneously into each mouse, and the mice were randomly divided into 8 groups (n=8): (1) control group (Con): received intraperitoneal injection of PBS; (2) endocrine therapy group (ET): received surgical removal of the bilateral testicles; (3) drug alone group (DTX): received intraperitoneal injection of DTX (10 mg/kg) once a week; (4) adenovirus treatment group (ZD55-SATB1): received intratumoral injection of ZD55-SATB1 (1×109pfu) every three days; (5) ET + ZD55-SATB1 group: received surgical castration and intratumoral injection of ZD55-SATB1; (6) ET + DTX: received surgical castration and intraperitoneal injection of DTX (10 mg/kg) once a week; (7) ZD55-SATB1 + DTX group: received intratumoral injection of ZD55-SATB1 and intraperitoneal injection of DTX; (8) ET + ZD55-SATB1 + DTX group: received surgical castration, intratumoral injection of ZD55-SATB1 and intraperitoneal injection of DTX. Tumor volume was measured every three days using the formula: V (mm3) =the length× width2×0.5. On the 28th day after injection the mice were sacrificed and xenograft tumors were dissected. The tumors were stained with hematoxylin-eosin following standard protocols, and immunohistochemical staining was performed using the antibodies for caspase-8, caspase-3, CD31 and Bcl-2 (Abcam, UK) and DBA kit (ZSGB-Bio, Beijing, China).

Statistical analysis

Data are shown as mean± standard deviation (SD). Comparison was performed by T-test for two groups and one-way ANOVA for multiple groups. P<0.05 was considered significant.

Results

Combined treatment effectively and specially inhibited the viability of prostate cancer cells

We chose three cell lines: PC-3 human prostate cancer cells with high metastatic potential; DU145 human prostate cancer cells with moderate metastatic potential, and WPMY-1 human prostatic stromal cells as control. Cells were divided into five groups: treated with PBS as normal control; treated with DTX as chemotherapy group; treated with ZD55-EGFP as oncolytic therapy group; treated with ZD55-SATB1 as oncolytic therapy and SATB1 targeted therapy group; treated with ZD55-SATB1+ DTX as oncolytic therapy and SATB1 targeted therapy in combination with chemotherapy. CCK-8 assay showed that the viability of PC-3 cells after 48 h in the ZD55-SATB1 (10 MOI) plus DTX (1 ng/mL) group (35.16±2.17%) was significantly lower than ZD55-SATB1 (10 MOI) group (57.13±2.02%); ZD55-EGFP (10 MOI) group (72.25±5.49%) and DTX (1 ng/mL) group (50.16±3.27%). The viability of DU145 cells after 48 h in the ZD55-SATB1 (10 MOI) plus DTX (1 ng/mL) group (37.27±3.62%) was significantly lower than ZD55-SATB1 (10 MOI) group (65.16±5.49%); ZD55-EGFP and (10 MOI) group (70.45±6.71%); DTX (1 ng/mL) group (47.19±3.56%). Finally, ZD55-SATB1 combined with DTX had little or no obvious effects on WPMY-1 cells (Figure 1).

Combined treatment effectively inhibited the invasion and migration of prostate cancer cells

Transwell assay showed that the numbers of invaded PC-3 cells in PBS, DTX, ZD55-EGFP, ZD55-SATB1 and DTX+ZD55-SATB1 groups were 172.2 ±14.5, 61.1±4.8, 54.4±4.4, 37.1±2.2, 25.7±3.6, respectively; the numbers of invaded DU145 cells in PBS, DTX, ZD55-EGFP, ZD55-SATB1 and DTX+ZD55-SATB1 groups were 201.7 ±15.4, 87.7±9.9, 67.6±8.5, 70.6±6.7, 37.5±4.1, respectively; the numbers of migrated PC-3 cells in PBS, DTX, ZD55-EGFP, ZD55-SATB1 and DTX+ZD55-SATB1 groups were 217.1 ±14.2, 141.7±4.4, 115.3±4.6, 72.7±6.2, 50.2±3.1, respectively; the numbers of migrated DU145 cells in PBS, DTX, ZD55-EGFP, ZD55-SATB1 and DTX+ ZD55-SATB1 groups were 301.2±17.3, 125.5±9.6, 197.2±8.7, 49.7±6.6, 32.4±4.7, respectively (Figure 2A,B). These results indicate that ZD55-SATB1+DTX exhibit much greater potential in suppressing migratory and invasive ability of prostate cancer cells compared with monotherapy group.

 Figure 1

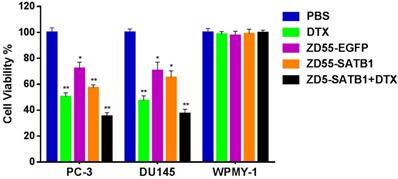

The viability of prostate cells in different treatment groups. *P<0.05, **P<0.01, versus PBS group.

J Cancer Image

Combined treatment effectively induced the apoptosis of prostate cancer cells

Flow cytometry based on Annexin-V-FITC/propidium iodide double staining showed that the percentage of apoptosis for PC-3 cells treated with ZD55-SATB1+DTX (52.19±3.46%) significantly increased compared to ZD55-SATB1 (28.17±2.31%) (P<0.01), ZD55-EGFP (25.86±3.53%) (P<0.01), DTX (22.58±2.24%) (P<0.01), while the percentage of apoptosis in the control group was significantly lower (5.32±1.28%) (Figure 3A,C). Similarly, combined treatment of ZD55-SATB1 and DTX significantly elevated the percentage of apoptosis for DU145 cells compared to either ZD55-SATB1 (28.79±3.04%) or DTX (23.33±2.47%) (Figure 3B,D). These results demonstrate that the combined treatment of ZD55-SATB1 with DTX efficiently induced the apoptosis of prostate cancer cells compared with monotherapy.

Combined treatment effectively inhibited epithelial-mesenchymal transition of prostate cancer cells

Epithelial mesenchymal transition (EMT) is associated with cancer invasiveness and migration. To examine whether the prostate cancer cell migration and invasion were associated with the EMT, we detected the expression of EMT related proteins, including MMP-2, vimentin and E-cadherin in PC-3 and DU145 cells. Combined ZD55-SATB1 and DTX significantly down-regulated the expression level of MMP-2, Vimentin and SATB1 and up-regulated the expressions of E-cadherin compared to ZD55-SATB1 or DTX monotherapy group (Figure 4, all P<0.05). These data suggest that combination treatment with ZD55-SATB1 and DTX inhibits prostate cancer metastasis and invasion via the inhibition of EMT.

 Figure 2

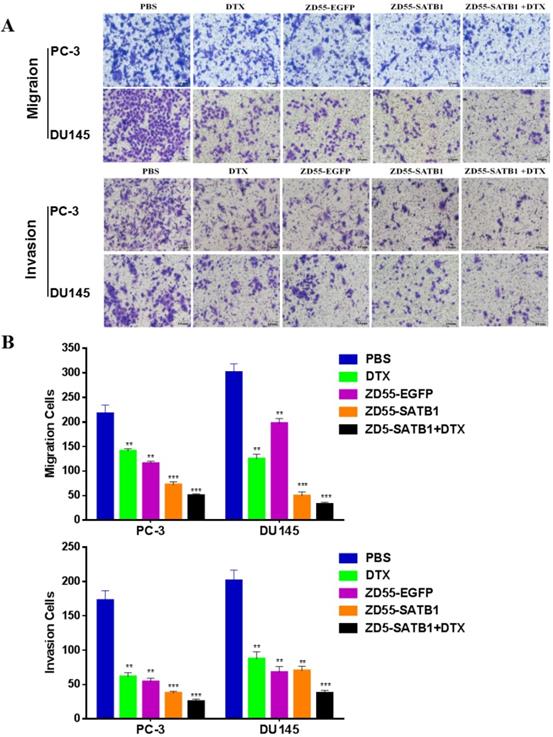

The invasion and migration of prostate cancer cells in different treatment groups. A. Images of transwell assays with PC-3 and DU145 cells (×200). B. Quantification of invaded and migrated cells in transwell assays. Data are presented as the mean±SD (n=3). **P<0.01, ***P<0.001, versus PBS group.

J Cancer Image

Combined treatment effectively inhibited the growth of tumor xenograft in nude mice

Based on the above in vitro data, we further evaluated the treatment effects of ZD55-SATB1 combined DTX on prostate cancer growth in vivo. PC-3 cells were injected subcutaneously into nude mice and 8 groups received different treatments a week later. The tumors were harvested 28 days later (Figure 5A). Tumor growth curve showed that ZD55-SATB1 combined with DTX and ET led to the slowest growth of xenograft tumors (Figure 5B). Hematoxylin-eosin staining showed reduced tumor in ZD55-SATB1 combined with DTX and ET group (Figure 5C).

Combined treatment effectively induced the apoptosis and inhibited the angiogenesis of tumor xenograft in nude mice

Immunohistochemical staining showed that ZD55-SATB1, DTX or ET alone increased the expression of caspase-3 and caspase-8 and decreased Bcl-2 expression. However, ZD55-SATB1+DTX+ET led to greater increase in the expression of caspase-3 and caspase-8 and greater decrease in Bcl-2 expression compared to other treatment groups. Moreover, ZD55-SATB1+DTX+ET led to greater decrease in the expression of angiogenesis marker CD31 compared to other treatment groups (Figure 6).

 Figure 3

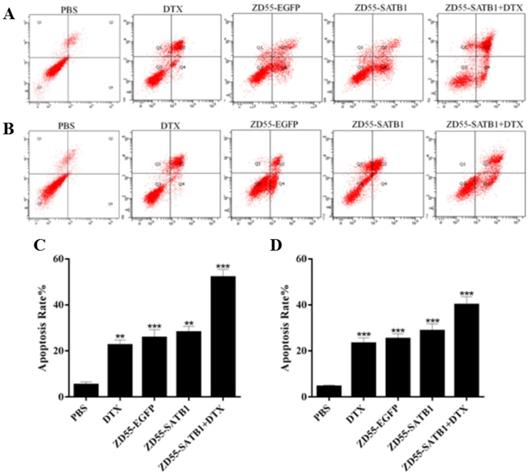

The apoptosis of prostate cancer cells in different treatment groups. The apoptosis of PC-3 (A) and DU145 (B) cells after 48 h treatment was detected by flow cytometric analysis. Quantitative analysis of the percentage of apoptosis of PC-3 (C) and DU145 (D) cells. Data are expressed as mean± SD of three separate experiments (**P<0.01, ***P<0.001 versus PBS group).

J Cancer Image
 Figure 4

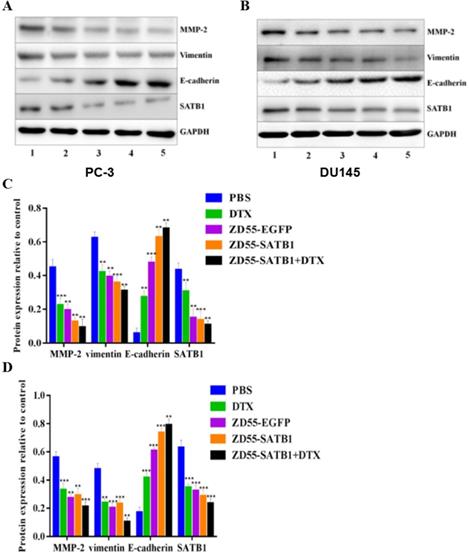

The expression of EMT related proteins in different treatment groups. Western blot analysis of MMP-2, Vimentin, E-cadherin, SATB1 in PC-3 (A) and DU145 (B) cells. GAPDH was loading control. 1. PBS; 2. DTX; 3. ZD55-EGFP; 4. ZD55-SATB1; 5. ZD55-SATB1+DTX. Densitometry analysis of protein levels in PC-3 cells (C) and DU145 cells (D). Experiments were performed independently for three times. (**P<0.01, ***P<0.001 versus PBS group).

J Cancer Image
 Figure 5

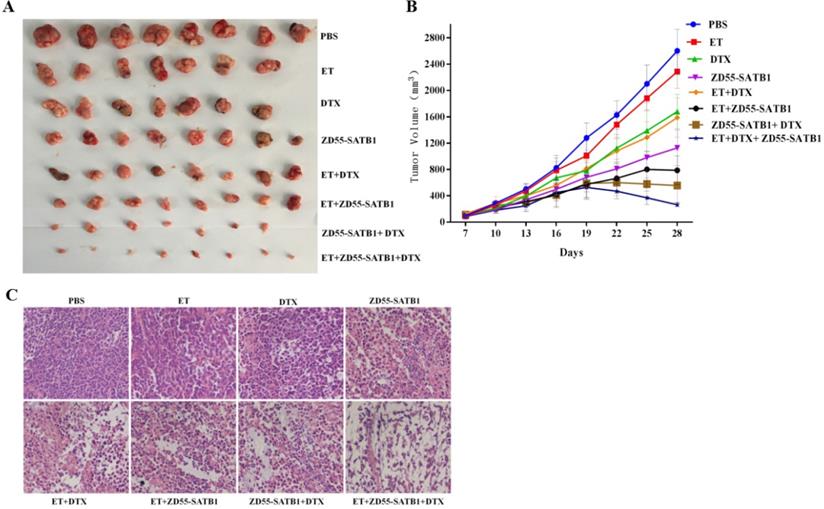

In vivo tumor growth in different treatment groups. A. PC-3 prostate tumor xenografts were harvested from each group. B. Tumor volume was measured at 3-day intervals and tumor growth curves were drawn to show growth of tumors of each group. C. H&E staining of xenografts collected from different groups of mice (×400).

J Cancer Image
 Figure 6

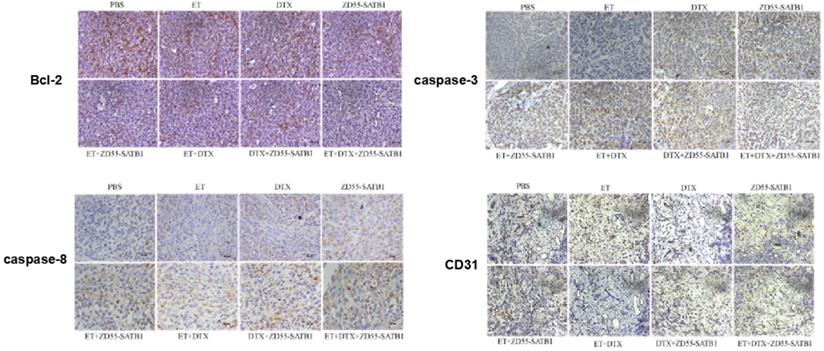

Immunohistochemical staining of caspase-3, caspase-8, Bcl-2 and CD31 in PC-3 prostate tumor xenografts in nude mice. (×200).

J Cancer Image

Discussion

Most prostate cancers are androgen dependent and androgen deprivation therapy (ADT) becomes the preferred treatment for advanced prostate cancer. Although ADT is efficient in early treatment, most patients developed CRPC about 1-3 years after ADT [13]. DTX based chemotherapy is recommended as a first-line treatment for prostate cancer. However, side effects of DTX such as myelosuppression, fluid retention, anaphylaxis, hypotension, vomiting or diarrhea affect the life quality of patients severely [14].

In this study we combined DTX with oncolytic adenovirus carrying SATB1 (ZD55-SATB1) to enhance the efficacy of DTX and reduce the dose and possible side effects of DTX. In vitro experiments showed that combined treatment (ZD55-SATB1 plus DTX) had the highest efficacy to inhibit the viability, invasion and migration of prostate cancer cells while had no significant effect on the viability of normal prostate cells. In addition, combined treatment had the highest efficacy to induce the apoptosis of prostate cancer cells.

EMT is a crucial process in cancer invasion and metastasis [15]. E-cadherin and vimentin are both EMT related proteins, and MMP-2 plays an important role in tumor invasion and metastasis [16,17]. Thus we performed Western blot analysis to detect the expression of MMP-2, vimentin and E-cadherin in PC-3 and DU145 cells. In cells treated with ZD55-SATB1 plus DTX, the expression levels of MMP-2, vimentin and SATB1 were significantly downregulated while the expressions of E-cadherin was significantly upregulated compared to other groups. Collectively, these results indicate that ZD55-SATB1 combined with DTX may inhibit prostate cancer growth by inducing apoptosis and inhibit prostate cancer invasion and metastasis by reversing EMT.

To further validate the anti-tumor efficacy of combined treatment, we employed nude mouse model with xenograft of prostate cancer cells. Monitoring of tumor growth in nude mice showed that tumor size was the smallest in ZD55-SATB1 combined with DTX and ET group. Immunohistochemical staining showed that apoptosis related proteins exhibited the most significant changes in expression levels in ZD55-SATB1+DTX+ET group compared to other combined treatment group and monotherapy group. These results are consistent with in vitro data that combined treatment induced the apoptosis of prostate cancer cells.

CD31 (also named platelet endothelial cell adhesion molecule-1) is expressed in blood vessels and lymphatic endothelial cells, and participates in angiogenesis and tumor metastasis [18]. Therefore, we detected CD31 expression in tumor tissues of nude mice by immunohistochemical staining. CD31 level significantly decreased in ZD55-SATB1+DTX+ET group compared to other combined treatment group and monotherapy group. These data complement the in vitro data that ZD55-SATB1+DTX could inhibit the invasion of prostate cancer cells.

In conclusion, the combination of ZD55-SATB1 and DTX showed synergistic effects to inhibit prostate cancer cell proliferation, invasion and migration, while induce prostate cancer cell apoptosis. The anti-metastasis mechanism of combined treatment is related to the inhibition of EMT. The combination of ZD55-SATB1 and DTX with endocrine therapy may provide a new approach to the treatment of prostate cancer.

Acknowledgements

Funding

This study was supported by the Project of Invigorating Health Care through Science, Technology and Education (No. CXTDA2017034). Jiangsu Provincial Medical Youth Talent (No. QNRC2016794).

Competing Interests

The authors have declared that no competing interest exists.

References

1. Torre L A, Bray F, Siegel RL. et al. Global cancer statistics, 2012. CA Cancer J Clin. 2015;65:87-108

2. Brown JE, Sim S. Evolving role of bone biomarkers in castration-resistant prostate cancer. Neoplasia. 2010;12:685-96

3. Picus J, Schultz M. Docetaxel (Taxotere) as monotherapy in the treatment of hormone-refractory prostate cancer: Preliminary results. Semin Oncol. 1999;26:14-18

4. Beekman KW, Fleming MT, Scher HI. et al. Second-line chemotherapy for prostate cancer: patient characteristics and survival. Clin Prostate Cancer. 2005;4:86-90

5. Galande S, Purbey PK, Notani D. et al. The third dimension of gene regulation: organization of dynamic chromatin loopscape by SATB1. Curr Opin Genet Dev. 2007;17:408-14

6. Liu X D, Zheng Y, Qiao C. et al. Expression of SATB1 and HER2 in breast cancer and the correlations with clinicopathologic characteristics. Diagnostic Pathol. 2015;10:50

7. Meng WJ, Yan H, Zhou B. et al. Correlation of SATB1 overexpression with the progression of human rectal cancer. Int J Colorectal Disease. 2012;27:143-50

8. Zuk K, Peczek L, Stec-Michalska K. et al. SATB1 expression in gastric mucosa in relation to Helicobacter pylori infection and family history of gastric cancer. Adv Med Sci. 2012;57:237-43

9. Chu SH, Ma YB, Feng DF. et al. Upregulation of SATB1 is associated with the development and progression of glioma. J Translational Med. 2012;10:149

10. Mao L, Yang C, Wang J. et al. SATB1 is overexpressed in metastatic prostate cancer and promotes prostate cancer cell growth and invasion. J Translational Med. 2013;11:111

11. Liu XY. Targeting gene-virotherapy of cancer and its prosperity. Cell Res. 2006;16:879-86

12. Zhao L, Gu J, Dong A. et al. Potent antitumor activity of oncolytic adenovirus expressing mda-7/IL-24 for colorectal cancer. Hum Gene Ther. 2005;16:845-58

13. Gravis G, Fizazi K, Joly F. et al. Androgen-deprivation therapy alone or with docetaxel in non-castrate metastatic prostate cancer (GETUG-AFU 15): a randomised, open-label, phase 3 trial. Lancet Oncol. 2013;14:149-58

14. Kim SM, Lee SY, Cho JS. et al. Combination of ginsenoside Rg3 with docetaxel enhances the susceptibility of prostate cancer cells via inhibition of NF-kappaB. Eur J Pharmacol. 2010;631:1-9

15. Ren J, Liang Q. HMGB1 promotes the proliferation and invasion of oral squamous cell carcinoma via activating epithelial-mesenchymal transformation. Biocell. 2019;43:199-206

16. Wang X, Lin M, Zhao J, Zhu S, Xu M, Zhou X. TSPAN7 promotes the migration and proliferation of lung cancer cells via epithelial-to-mesenchymal transition. Onco Targets Ther. 2018;11:8815-22

17. Zhang B, Zhang Y, Zhang X, Lv Y. Suspension state promotes extravasation of breast tumor cells by increasing integrin β1 expression. Biocell. 2018;42:17-24

18. Jacquemier J, Mathoulin-Portier MP, Valtola R. et al. Prognosis of breast-carcinoma lymphagenesis evaluated by immunohistochemical investigation of vascular-endothelial-growth-factor receptor 3. Int J Cancer. 2000;89:69-73

Author contact

Corresponding address Corresponding authors: Chunhua Yang, E-mail: yangchunhua820203com; Junnian Zheng, E-mail: mljmlj05edu.cn.


Received 2020-4-10
Accepted 2020-12-26
Published 2021-1-25
